Serra modello L-AIR

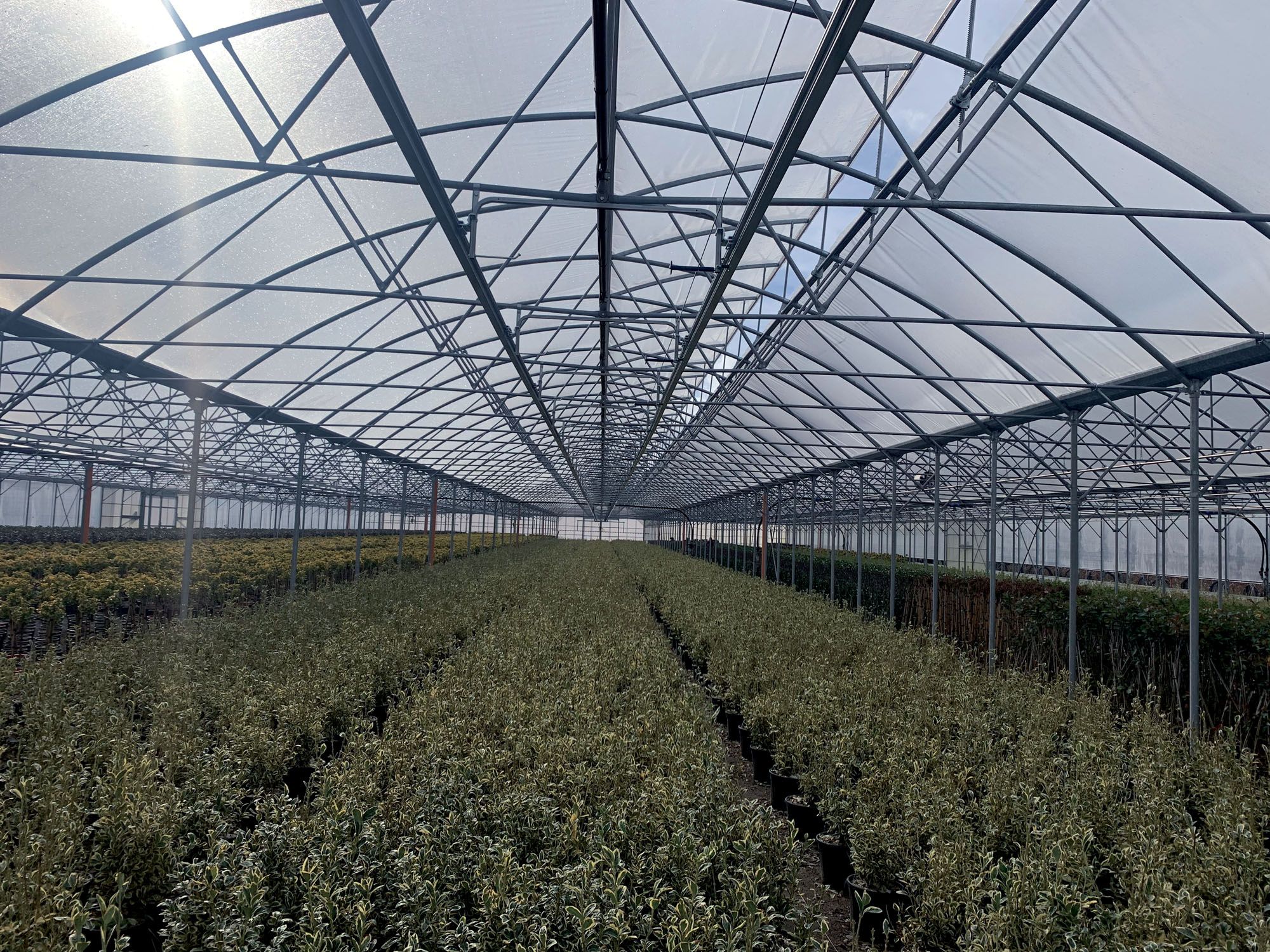

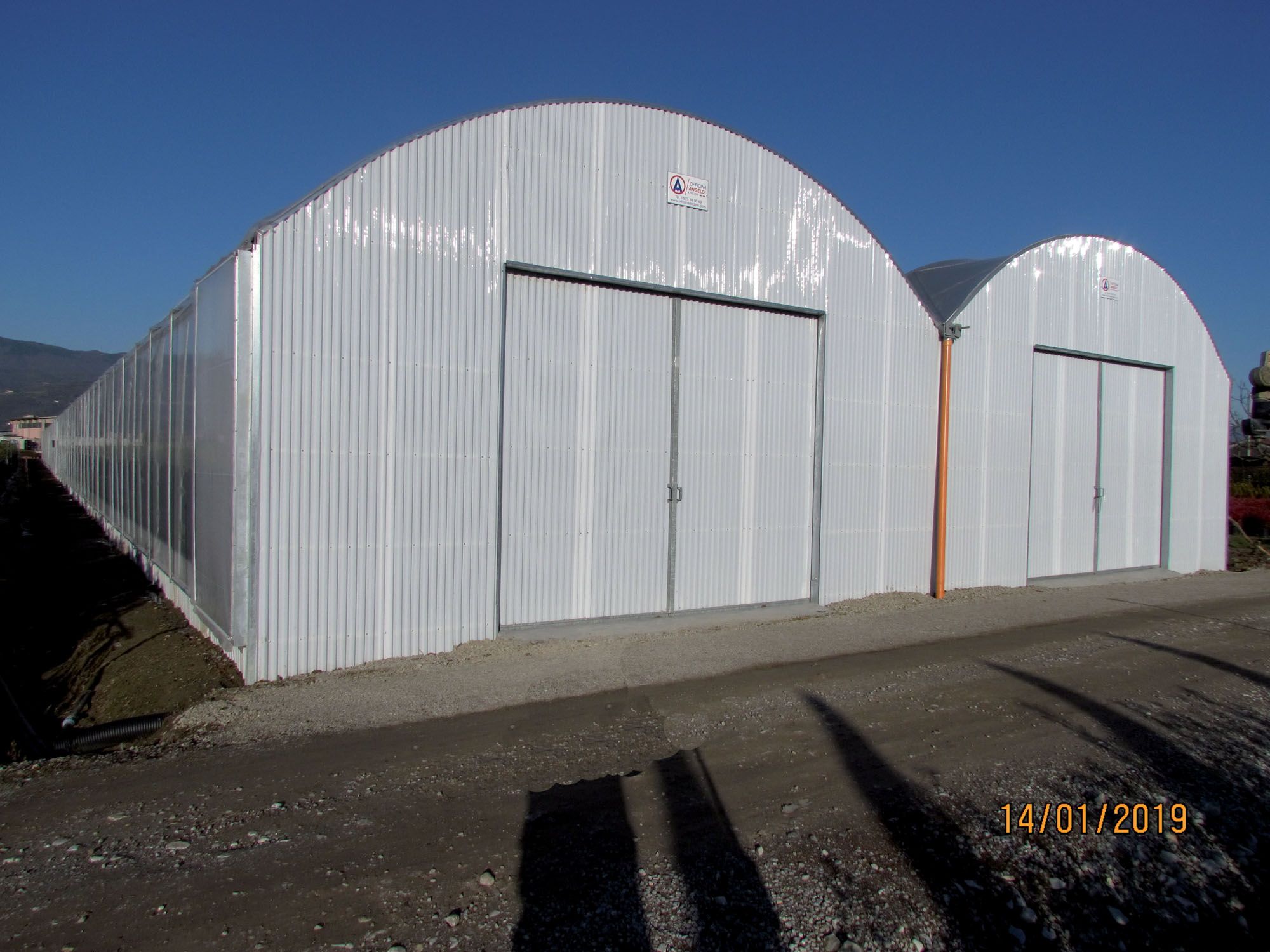

The L-AIR MODEL has straight sides with a roof structure made up of 2 semi-arches joined at the ridge.

Available in single, double and multi span.

The L-AIR MODEL has two properties that differentiate it from the other structures we produce: reduced costs and simplicity of installation.

It finds application mainly in the horticultural field.

The straight sides allow full use of the spaces and an optimal ventilation circle through the side, frontal and ridge openings.

As for the other structures, there are different sizes and the possibility of customizing the roofing

and infill materials.

L-AIR
L-AIR
technical requirements image node L-AIR

Requisiti tecnici

The material is Z275 galvanized steel structure.

Distance between side pillars: 2,5 m.

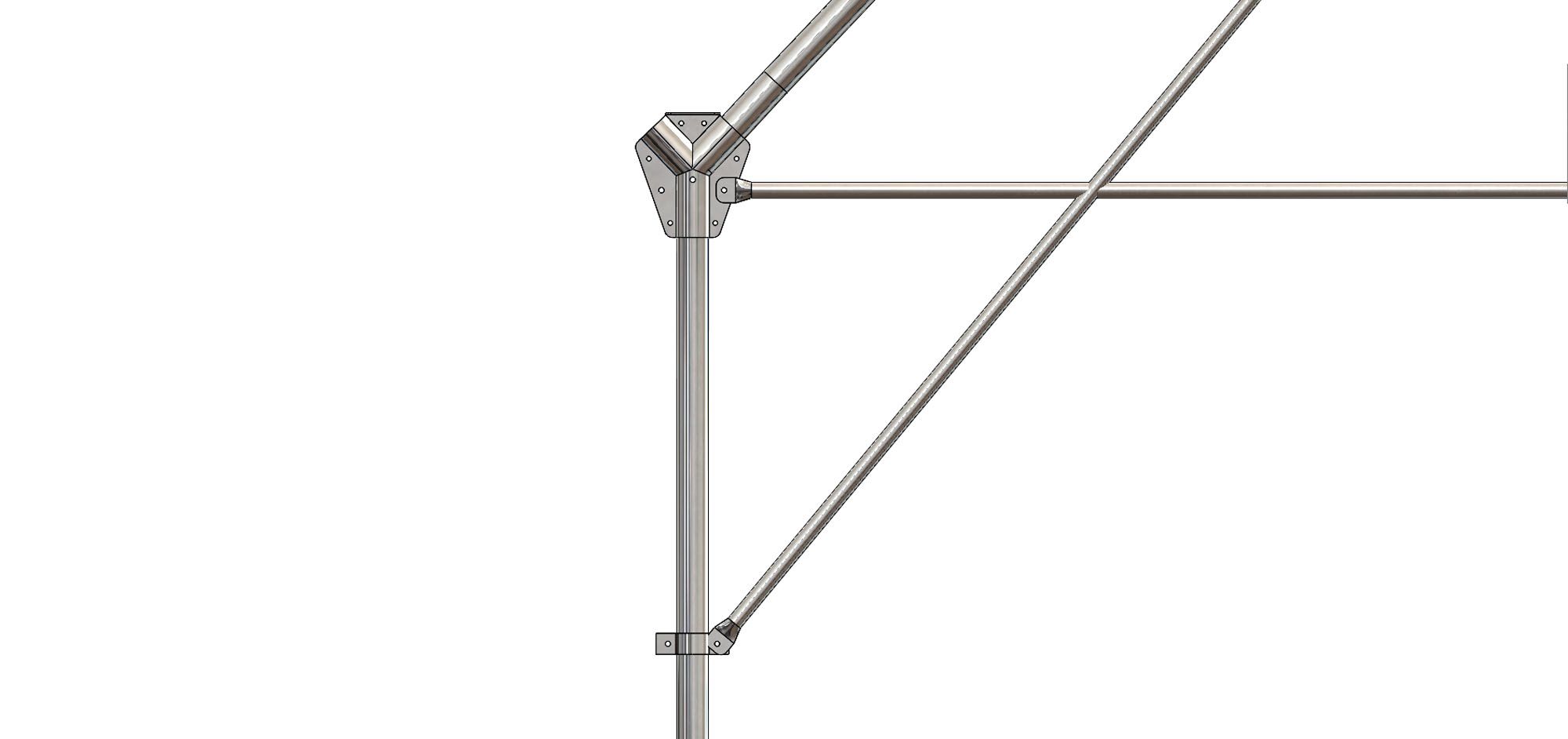

Technical characteristics of the pillars

Span pillar tube in ø 60x2 or 3 mm tube galvanized Z275.

All poles are equipped with a special anti-slip plate placed at the base,

furthermore each pole will have a tar protection for a length of 1m (this is the underground portion).

arcs L-AIR

Archi

The distance between the arches is: 2,50 m.

All our arches are in Z275 galvanized tube ø 60 mm composition of the arches placed on the columns:

  • 1 horizontal chain in tube ø 32 mm Z275
  • 1 tie rod in tube ø 32 mm Z275
  • 2 diagonals in tube ø 32 mm Z275
  • 2 struts keyed to the columns in tube ø 32 mm Z275

Tubular reinforcement along the length:

  • 1 line of ridge purlins in tube ø 32 mm Z275
L standard H tirante H gronda H colmo Passo
8,00 m 2,40 / 3,30 m 2,40 / 3,30 m 3,90 / 4,60 m 2,00 / 2,50 m
9,00 m 2,40 / 3,30 m 2,40 / 3,30 m 4,60 / 5,30 m  2,00 / 2,50 m
9,60 m 2,40 / 3,30 m 2,40 / 3,30 m 5,20 / 6,10 m 2,00 / 2,50 m
10,00 m 2,40 / 3,30 m 2,40 / 3,30 m 5,50 / 6,40 m 2,00 / 2,50 m

Standard sizes available in stock. Ability to change the width measurements, height and pitch.

L standard H tirante H gronda H colmo Passo
8,00 m 2,40 / 3,30 m 2,40 / 3,30 m 3,90 / 4,60 m 2,00 / 2,50 m
9,00 m 2,40 / 3,30 m 2,40 / 3,30 m 4,60 / 5,30 m  2,00 / 2,50 m
9,60 m 2,40 / 3,30 m 2,40 / 3,30 m 5,20 / 6,10 m 2,00 / 2,50 m
10,00 m 2,40 / 3,30 m 2,40 / 3,30 m 5,50 / 6,40 m 2,00 / 2,50 m

Standard sizes available in stock. Ability to change the width measurements, height and pitch.
